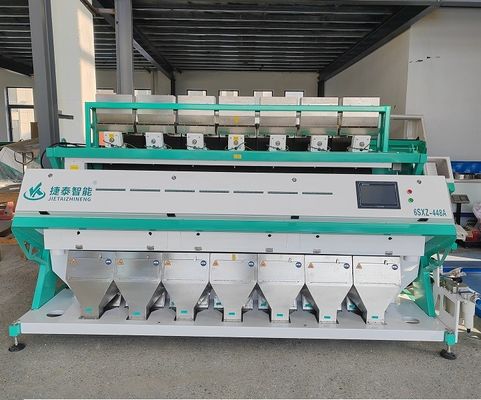

7 Chutes 448 Channels Grain Color Sorter Machine With CCD Sensor
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-448A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 220V/50HZ | Packing Size | 3290*1720*2100mm |
|---|---|---|---|
| Type | Grain Color Sorter | Condition | New |
| Production Capacity | 5.0-10T/H | Color | Blue |
| Sorting Accuracy(%) | ≥99.99 | Power(w) | 4.0KW |
| Highlight | 7 Chutes Grain Color Sorter Machine,448 Channels Grain Color Sorter Machine,CCD Sensor Grain sorter Machine |
||
Product Description
7 Chutes 448 Channels Yellow Rice Processing Machine Yellow Rice Color Sorter From China
Color Sorter Working Steps
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters
| MODEL |
6SXZ-448A |
| Chutes/Channels |
7 / 448 |
| Throughput(T/H) |
11-21 |
| Accuracy(Percent) |
≥99.99% |
| Power(Kwh) |
4.0 |
| Power Voltage |
220V/50Hz |
| Air compressure(Mpa) |
0.6-0.8 |
| Air Consumption(L/M) |
<2.6 |
| Weight(Kg) | 1340 |
| Dimension(L*W*H) |
3166*1570*1785mm |
Little Yellow Rice Processing
Application Fields
Rice:Parboiled rice,Black rice,Red rice,Broken rice.
Grains:Peanut,Corn,Sesame,Wheat,Oat,Millet.
Beans:Red beans,Kindney beans,Coffee bean,Black bean.
Nuts:Walnut,Kernel apriot,Pistachios, almonds, cashews, pine nuts, hazelnut,etc.
Seeds:Watermelon seeds;Sunflower seeds.
Industries:Plastic,electronic component,Salt,Quartz sand.
Others:Raisins,Pepper,Dried lily,Wolf berry.
Packaging Details and Shipping
Our products use professionalwooden cases with PE plastic bag.Package size will depend on each model size.
