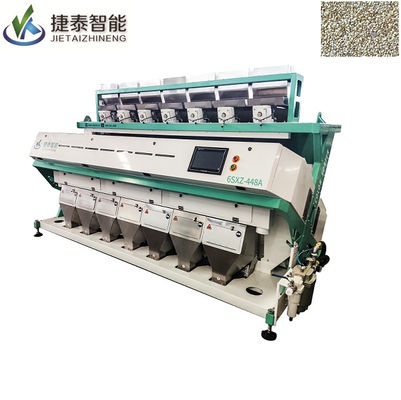

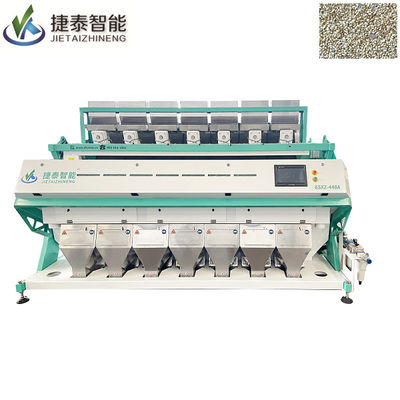

4KW Sesame Seeds sorter Machine 7 Chutes 448 Channels sesame color sorter
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-448A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 220V/50HZ | Type | Sesame Sorting Machine |
|---|---|---|---|
| Condition | New | Color | Blue |
| Sorting Accuracy(%) | ≥99.99 | Power(w) | 4KW |
| Application | Seed Processing | Name | Seed Color Sorter Machine |
| Highlight | 4KW Sesame Seeds sorter Machine,Sesame Seeds sorter Machine 7 Chutes,448 Channels Sesame Color Sorter |
||
Product Description
MultiPurpose Grains Cereals Seed Color Sorter Machine For Seed Sorting 7 Chutes
Technical Parameters
| MODEL |
6SXZ-448A |
| Chutes/Channels |
7 / 448 |
| Throughput(T/H) |
5-7 |
| Accuracy(Percent) |
≥99.99% |
| Power(Kwh) |
4.0 |
| Power Voltage |
220V/50Hz |
| Air compressure(Mpa) |
0.6-0.8 |
| Air Consumption(L/M) |
<2.6 |
| Weight(Kg) | 1340 |
| Dimension(L*W*H) |
3166*1570*1785mm |
Working Principle of Color Sorters
Raw Material are put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Sorting Perfomance
Sesame:Sort yellow and white sesame seeds,black sesame seeds,pumpkin seeds,sunflower seeds,watermelon seeds,and so on.
It also can wildly used for kinds of grains,beans,like lentil,dal,millet,etc.
JIETAI Color Sorter Core Parts
* Touch Screen Interface:Independent-research operate interface.
* Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
* Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
* Filter:SMC from Japan.
* Touch Screen System:Windows CE system.
* Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
* Ejectors:Italy core technology, new special high wear-resistant material.
* LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Advantage of Jietai Color Sorter
1. No need to debug, you can use after power-on, without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice, japonica rice, glutinous rice, black rice and red rice.
3. The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4. It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5. The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6. Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7. Intelligent self-inspection, dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8. Worry-free after-sale service, free regular inspection and quality guaranteed.
Our Office&Workshop&Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Packaging&Shipping
1.Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
2.The delivery time is about 15-20 days after receciving the deposit.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.
Cooperation Case
The success introduction of the JT Color Sorter into the market meets the demand of the international
market.Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Plaese feel free to inquire if you are interested in our procducts!
