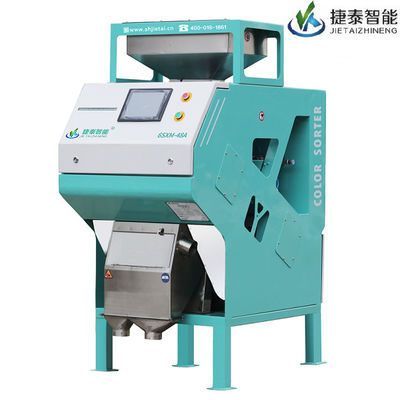

Small Size Home Use Rice Color Sorter Machine Easy To Operate

  • Small Size Home Use Rice Color Sorter Machine Easy To Operate
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXM-48
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Rice Sorting Capacity(T/H) 0.4-0.6
Power 220V/50HZ Condition New
Sorting Accuracy(%) ≥99.99 Dimension(l*w*h) 665*1190*1440mm
Function Color Sorter,sorting Different Color Materials Feature Easy Operation,Intelligent
Highlight

Small Size Rice Color Sorter Machine

,

Easy Operate Rice Color Sorter

,

Easy Operation Rice Color Sorter
Leave a Message
Product Description

Small Size Home Use Easy To Operate Rice Color Sorter Machine



How the color sorter works

The selected material enters the machine from the hopper at the top. Through the vibration of the vibrator device, the selected material slides down the channel, accelerates its falling into the observation area in the separation room, and passes through the sensor and the background plate. Under the action of the light source, according to the light intensity and color change, the system generates an output signal to drive the solenoid valve to blow out the heterogeneous particles to the waste chamber of the receiving hopper, and the good selected material continues to fall into the finished product chamber of the receiving hopper, so as to achieve the purpose of separation.





Technical Parameters

Model

NO.

 6SXM-48

Accuracy

(Percent)

 99.99

Optical Carryover

(Bad:Good)

 30:1

Capacity

(T/H)

 0.4-0.6

Power

(kwh)

 1.0

Air Pressure

(Mpa)

 0.6-0.8

Air Consumption

(L/M)

≤0.4

Dimension(mm)

(L*W*H)

 665*1190*1440

Weight

(kg)

 200



Jietai Color Sorter Features

1. Easy to operate,Low maintenance cost.

2. High performance-price ratio.

3. Simple structure,small footprint.

4. Large output and low power.

5. High accuracy of color separation



Sorting Performance

Rice color sorter is using RGB full colorful camera can multi using on sorting various kinds of rice,yellow rice,boiled rice, parboiled rice,sticky rice,basmati rice,long grain rice,peal rice,Thai rice,paddy rice,barley,black rice.

Small Size Home Use Rice Color Sorter Machine Easy To Operate 0

JIETAI Color Sorter Core Parts

a. Touch Screen Interface:Independent-research operate interface.
b. Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
c. Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
d. Filter:SMC from Japan.
e. Touch Screen System:Windows CE system.
f. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
g. Ejectors:Italy core technology, new special high wear-resistant material.
h. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.


Small Size Home Use Rice Color Sorter Machine Easy To Operate 1


Our Service

Before sales services

We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.

After sales services

1. Provide free training,consulting and technical support for users;

2. Provide personalized programs to the demands of customers;

3. Upgrade software for free for a life time;

4. Provide free warranty service for one year(except the wearing spare parts);

5. Provide 7*24 hours consultation and urgent servicce for users.



Contact Us

Small Size Home Use Rice Color Sorter Machine Easy To Operate 2
