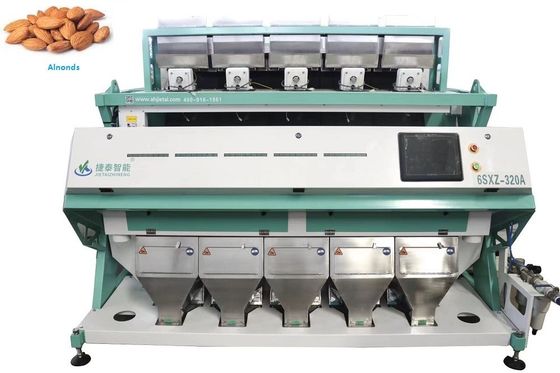

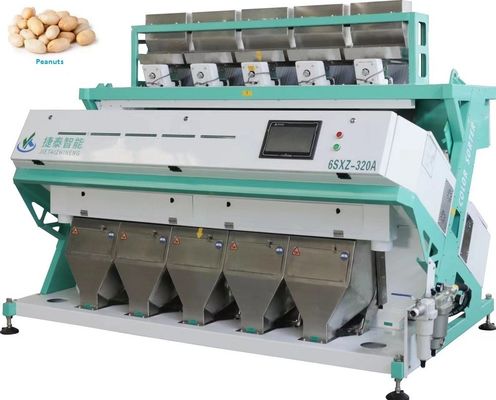

CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine

  • CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine
  • CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXZ-320A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Nuts Sorting Capacity(T/H) 7.5-14
Color Blue-White Condition New
Sorting Accuracy(%) ≥99.99 Dimension(l*w*h) 2455*1524*1790mm
Function Color Sorter,sorting Different Color Materials Voltage 220V/50HZ
Power(kw) 3.0 Type Grain Processing Equipment,Automatic,color Sorter Machine,Rice Mill Production Line,Rice Prossessing Equipment
Highlight

Walnut Nuts Color Sorter

,

Bean Nuts Color Sorter

,

CCD bean sorting machine
Leave a Message
Product Description

Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.



Technical Parameters



MODEL 6SXZ-320A
Chutes/Channels 5/ 320
Throughput(T/H) 7.5-15
Accuracy(Percent) ≥99.99%
Power(Kwh) 3.0
Power Voltage 220V/50Hz
Air compressure(Mpa) 0.6-0.8
Air Consumption(L/M) <3.0
Weight(Kg) 1400
Dimension(L*W*H) 2455*1524*1790mm



Product Features



►IOT color sorter system

Highly humanized interface of human-machine interaction, Smart cloud interconnect, Remote control, accurate big data statistics and analysis.Call the multiple preset color selection modes at any time.



►HD image capture system

Full-color high-speed CCD sensor recognizes 0.04mm²area,Nikon camera,super high resolution,ultra-sensitive ,wide vision, low distortion.



►Multi-core parallel image processing system

Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.



►Intelligent high-frequency solenoid valve

Ultra-low air consumption, ultra-low carryover ratio, intelligent detect the working status of ejectors,avoid the fault and prolong the life of ejectors.



►Shadowless colorful spectrum LED

Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.



►Input and Output system

Adopting a new pressure-resistant structure to feed, which greatly increases the output of the machine and ensures the stability of the machine.The straight-through discharge structure solves the problem of material blocking and stacking.



Application Fields

Our machine can sort many kinds of nut.



Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.


CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine 0

Cooperation Case



Our mahchine can be found everywhere in Thailand,China,India,Philippines,Algeria and others more conuntries.


CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine 1



Our Service

Our Service Team
CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine 2

Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.

After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.

Packaging&Shipping



Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine 3



Plaese feel free to inquire if you are interested in our procducts!

CCD Camera Walnut Kernel Nuts Color Sorter Bean Sorting Machine 4
