Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine

  • Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine
  • Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine
  • Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXZ-384A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 15-20 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 220V/50HZ Type Rice Sorting Machine
Condition New Production Capacity 4-6T/H
Color Blue Sorting Accuracy(%) ≥99.99
Power(w) 3.5KW
Highlight

Blue Beans Color Sorter

,

Red Beans Color Sorter Machine

,

CCD Coffee Bean Sorting Machine
Leave a Message
Product Description

Working Principle of Color Sorters

Raw Materialare put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

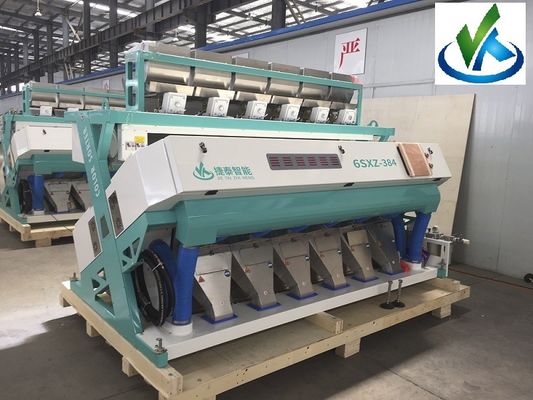

 Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine 0
Technical Parameters

MODEL 6SXZ-448A
Chutes/Channels 6/384
Throughput(T/H) 4-8
Accuracy(Percent) ≥99.99%
Power(Kwh) 3.5
Power Voltage 220V/50Hz
Air compressure(Mpa) <2.2
Weight(Kg) 1350
Dimension(L*W*H) 2800*1560*1800mm



Sorting performance

It's mainly use in sorting beans,such as soybeans,Mung,Red Bean and so on.It features high pure rate,low loss and stable performace.

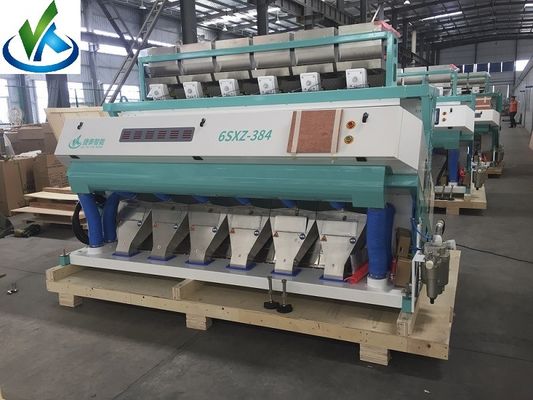

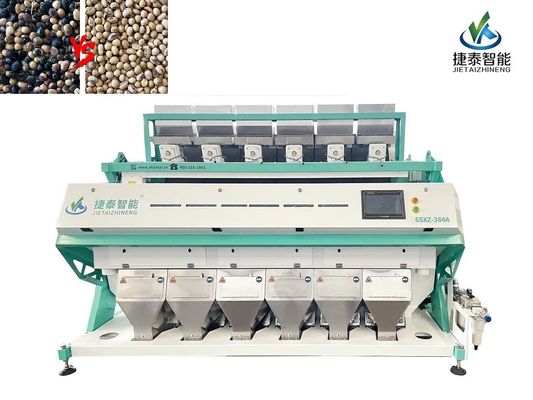

Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine 1Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine 2








































































































Packaging Details and Shipping
Our products use professionalwooden cases with PE plastic bag.Package size will depend on each model size.

Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine 3

Our Service
Our Service Team
Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine 4
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
① Provide free training,consulting and technical support for users;
② Provide personalized programs to the demands of customers;
③ Upgrade software for free for a life time;
④ Provide free warranty service for one year(except the wearing spare parts);
⑤ Provide 7*24 hours consultation and urgent servicce for users.


Contact Us:
Blue Red Beans Color Sorter CCD Coffee Bean Sorting Machine 5
