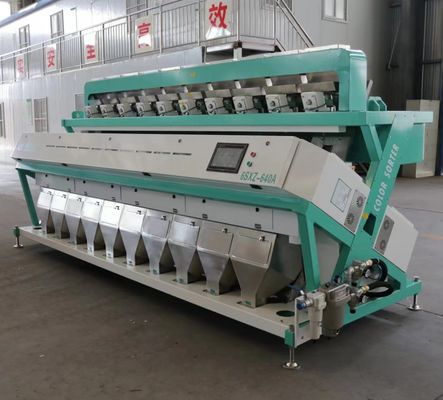

JIETAI Custom Corn Color Sorter Machine Manufacturer Cashew Colour Sorting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-640A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 220V/50HZ | Type | Corn Sorting Machine |
|---|---|---|---|
| Condition | New | Production Capacity | 15-30T/H |
| Color | Blue | Sorting Accuracy(%) | ≥99.99 |
| Power(w) | 6.0KW | ||
| Highlight | Custom Corn Color Sorter,Corn Color Sorter Machine Manufacturer,ISO9001 Cashew Colour Sorting Machine |
||
Product Description
Color Sorter also named color sorting machine, color sorter machine or optical sorting machine, it is according to the color differences of granular materials, using high-resolution CCD optical sensor to drive solenoid valve to sorting different granular materials.Jietai Color Sorter has been widely used in many industry in the world. Such as agricultural products, food and mining industries, The most common use is sorting rice, wheat, corn, peanut, a variety of beans, seeds, tea, herbs, dried vegetables, recycled plastic, salt and ore etc
Working Principle of Color Sorters
Raw Materialare put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters
| MODEL | 6SXZ-640A |
| Chutes/Channels | 10/ 640 |
| Throughput(T/H) | 15-30 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 6.0 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | 0.6-0.8 |
| Air Consumption |
≤3.9 |
| Weight(Kg) | 1820 |
| Dimension(L*W*H) |
3895*1621*1816mm |
Jietai Color Sorter Features
＊IOT color sorter system
Highly humanized interface of human-machine interaction, Smart cloud interconnect , Remote control, accurate big data statistics and analysis.Call the multiple preset color selection modes at any time.
＊HD image capture system
Full-color high-speed CCD sensor recognizes 0.04mm²area,Nikon camera,super high resolution,ultra-sensitive ,wide vision, low distortion.
＊Multi-core parallel image processing system
Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
＊Intelligent high-frequency solenoid valve
Ultra-low air consumption, ultra-low carryover ratio, intelligent detect the working status of ejectors,avoid the fault and prolong the life of ejectors.
＊Shadowless colorful spectrum LED
Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
＊Input and Output system
Adopting a new pressure-resistant structure to feed, which greatly increases the output of the machine and ensures the stability of the machine.The straight-through discharge structure solves the problem of material blocking and stacking.

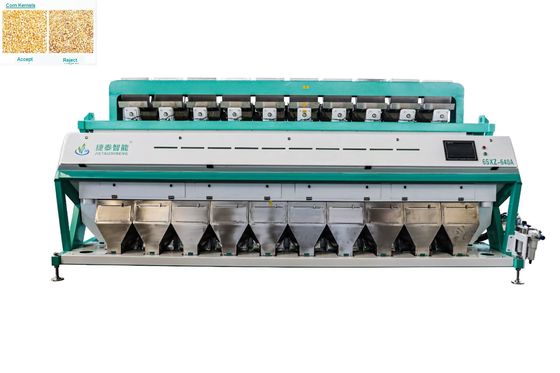

Corn Sorting Performance
This series can also work for other grains such as wheat,sesame,millet,etc.

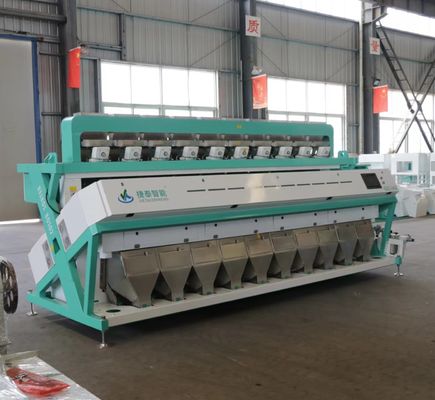

Workshop&Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Cooperation Case
At present, our products have been distributed to more than 50 countries and regions around the world, providing high-quality products and services to global customers.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
① Provide free training,consulting and technical support for users;
② Provide personalized programs to the demands of customers;
③ Upgrade software for free for a life time;
④ Provide free warranty service for one year(except the wearing spare parts);
⑤ Provide 7*24 hours consultation and urgent servicce for users.
Plaese feel free to inquire if you are interested in our procducts!
