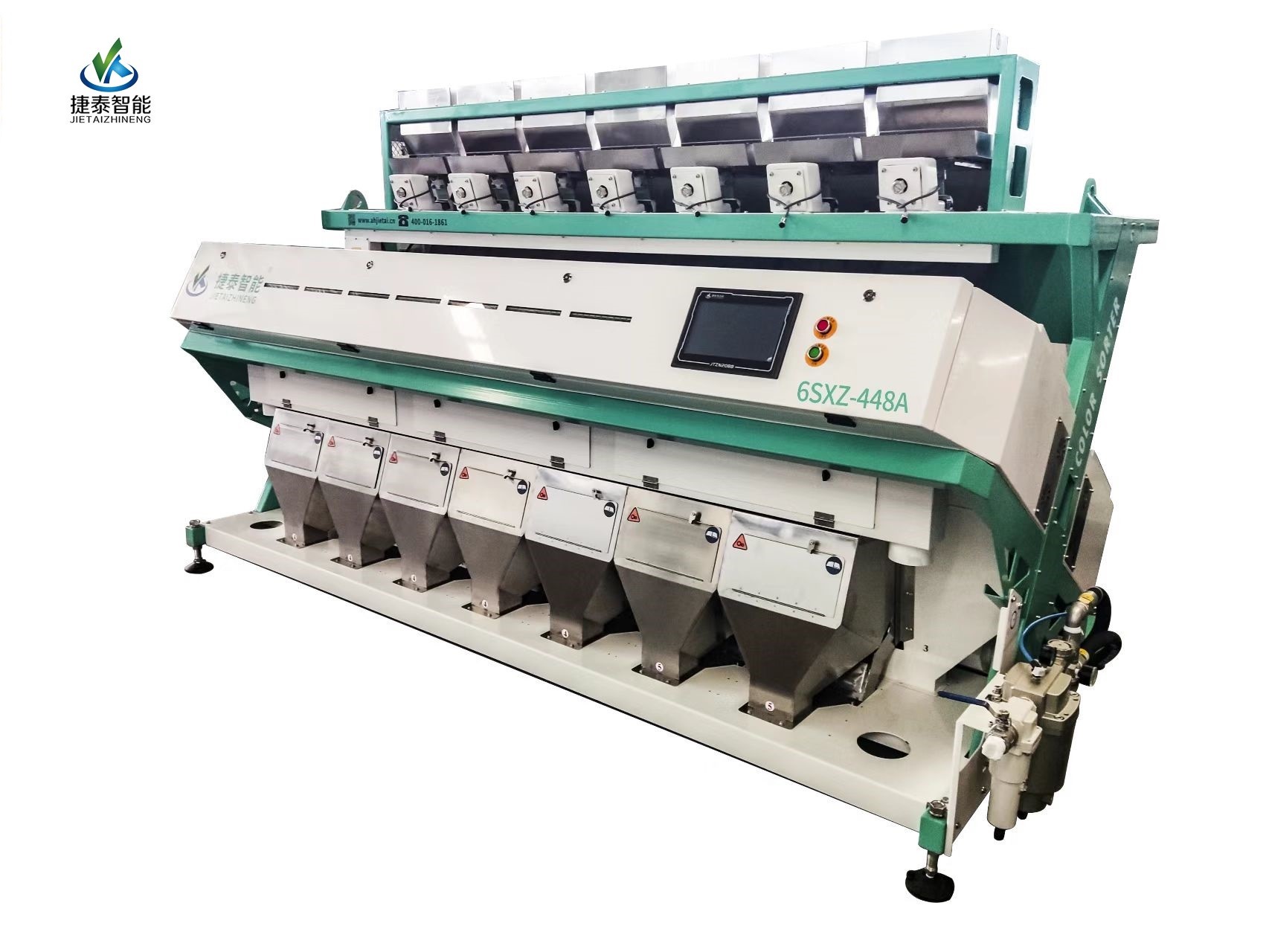

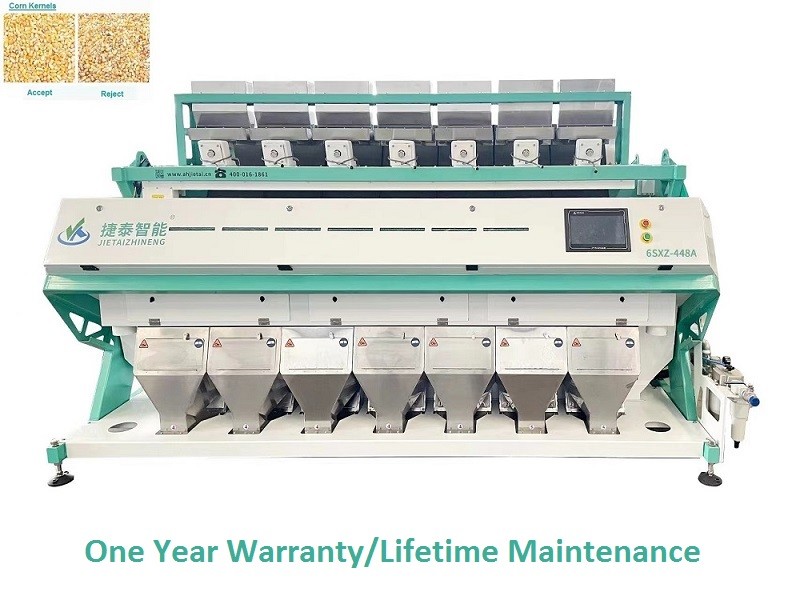

ODM Multi Grain Wheat Sorting Machine 220V 50Hz
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-448A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 220V/50HZ | Packing Size | 3290*1720*2100mm |
|---|---|---|---|
| Type | Rice Sorting Machine | Condition | New |
| Production Capacity | 10-20T/H | Color | Blue |
| Sorting Accuracy(%) | ≥99.99 | Power(w) | 4.0KW |
| Application | Grain Processing | ||
| Highlight | ODM wheat sorting machine,220V wheat sorting machine,220V multi grain sorting machine |
||
Product Description
Technical Parameters
| MODEL |
6SXZ-448A |
| Chutes/Channels |
7 / 448 |
| Throughput(T/H) | 10-20 |
| Accuracy(Percent) |
≥99.99% |
| Power(Kwh) |
4.0 |
| Power Voltage |
220V/50Hz |
| Air compressure(Mpa) |
0.6-0.8 |
| Air Consumption(L/M) |
<2.6 |
| Weight(Kg) | 1340 |
| Dimension(L*W*H) |
3166*1570*1785mm |
Working Principle of Color Sorters
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
Corn Processing
Sorting Performace
JIETAI Color Sorter Core Advantages
Our Workshop and Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Cooperation Case
The success introduction of the JT Color Sorter into the market meets the demand of the international
market.Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Packaging Details
Our products use professionalwooden cases with PE plastic bag.Package size will depend on each model size.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
① Provide free training,consulting and technical support for users;
② Provide personalized programs to the demands of customers;
③ Upgrade software for free for a life time;
④ Provide free warranty service for one year(except the wearing spare parts);
⑤ Provide 7*24 hours consultation and urgent servicce for users.
Plaese feel free to inquire if you are interested in our procducts!
