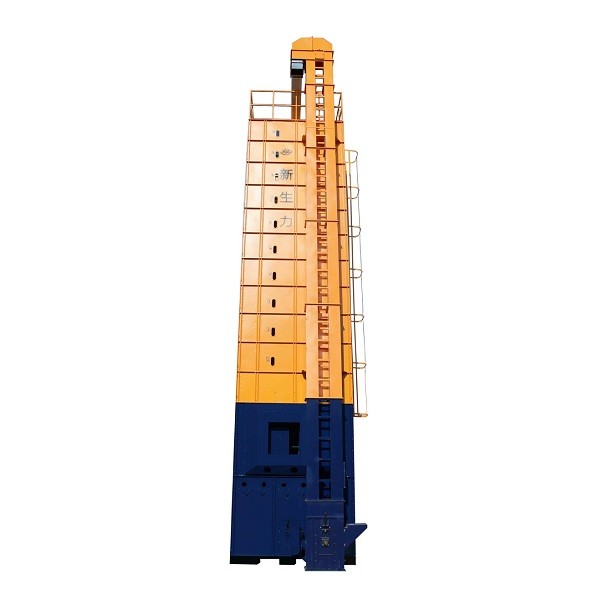

380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine

  • 380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine
Place of Origin Anhui,China
Brand Name PRESUN
Model Number 5HPX-15/30
Minimum Order Quantity 1sets
Price negotiable
Packaging Details Seaworthy Wooden Packingworthy Wooden Packing
Payment Terms L/C, T/T
Supply Ability 100sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Drying Machine Name Paddy Dryer Machine
Application Rice,Corn,Wheat... Condition New
Voltage 380V Specification Depend On The Capacity
Customization Available
High Light

Custom Vertical Grain Dryer

,

Agricultural Paddy Drying Machine

,

Vertical Paddy Dryer Machine
Leave a Message
Product Description

Good Quality Rice Paddy Drying Machine Grain Dryer Vertical Dryer Tower

Our company is a professional manufacturer with development,manufacturing, sales and services.

Product Features:
Grain dryers are used for drying agricultural products:Rice corn,maize,wheat,peanuts,oil seed,etc.

The drying process is to remove humidity and prevent the products from fungi or mildew,which provides the possibility of longer time storage.

1. The grain dryer equipment has a simple structure; Small volume after dismantling,easy for transportation and movement.

2. Equipped with online moisture meter,automatic moisture control to prevent over-drying and weight loss.

3. Automatic temperature control system:the hot air temperature and air volume can be adjusted during drying process automatically to ensure the top drying quality.

4. Highly automated operation with microcomputer control to reduce labor and improve working efficiency.

5. Increased drying area and the drying speed is accelerated.

· Variety of heat sources can be applied,including biomass,fuel,gas,coal,etc.

Product Description

Model

Item

 5HPX-15 5HPX-20 5HPX-30 5HPX-30B 5HPX-35
Loading capacity(kg) Paddy 3,000~15,000 3,000~20,000 4,000~30,000 4,000~30,000 5,000~35,000
  Corn 3,800~18,500 3,800~24,600 5,000~36,400 5,000~36,400 6,000~42,000
Dimension L*W*H (mm) 4321*2583*10000 4600*3263*10500 4600*3260*12700 4600*3570*12700 5712*5000*12400
Net Weight 3,000 4,200 5,500 6,500 8,000
Heat Source Biomass Furnace/Gas Burner/Diesel Burner
Power Consumption (kw) 9.95 10.6 15.45 21.7 19.7
Input Voltage 3 Phase 220V/380V,50Hz
Husk Furnace Type Indirect
  Ignition Manual
Function Loading 50~60(approx) 50~60(approx) 60~70(approx) 60~70(approx) 60~70(approx)
  Discharge 50~60(approx) 50~60(approx) 60~70(approx) 60~70(approx) 60~70(approx)
  Drying Rate 0.5-1.2 %/h 0.5-1.2 %/h 0.6-1.2 %/h 0.6-1.4 %/h 0.5-1.2 %/h
Standard Devices Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor
Safety Devices Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch



Application

Grain dryers are used for drying agricultural products: corn,maize,wheat,peanuts,oil seed,etc.

380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 0

Cooperation Case

More than hundreds of projects installed,professional presale and aftersale service team.





380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 1

380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 2

380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 3380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 4

380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 5380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 6

380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 7380V Custom Vertical Grain Dryer Tower , Agricultural Paddy Drying Machine 8
