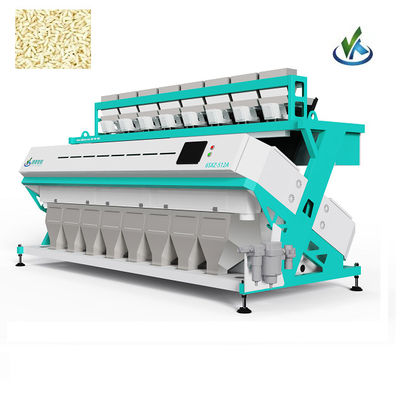

Intelligent RGB Multi Usage Rice Color Sorter For Rice Processing Line Use
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-512A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 220V/50HZ | Type | Nuts Sorting Machine |
|---|---|---|---|
| Condition | New | Color | Blue |
| Sorting Accuracy(%) | ≥99.99 | Power(w) | 4.0KW |
| Name | Peanut Color Sorter | Function | Sorting,Multifunction,separator Differeent Color Grains |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service | Name | Rice Color Sorter Machine |
| Highlight | Multi Use Rice Color Sorter,Intelligent RGB Rice Color Sorter,Blue Rice Color Sorter Machine |
||
Product Description
Technical Parameters
| Model NO. |
6SXZ-512A |
| Accuracy (Percent) |
99.99 |
| Optical Carryover (Bad:Good) |
30:1 |
| Capacity (T/H) |
6.0-12.0 |
| Power (kwh) |
5.0 |
| Air Pressure (Mpa) |
0.6-0.8 |
| Air Consumption (L/M) |
≤3.6 |
| Dimension(mm) (L*W*H) |
3486*1560*1800 |
| Weight (kg) |
1750 |
How the color sorter works
The selected material enters the machine from the hopper at the top.Through the vibration of the vibrator device,the selected material slides down the channel,accelerates its falling into the observation area in the separation room, and passes through the sensor and the background plate. Under the action of the light source,according to the light intensity and color change,the system generates an output signal to drive the solenoid valve to blow out the heterogeneous particles to the waste chamber of the receiving hopper,and the good selected material continues to fall into the finished product chamber of the receiving hopper, so as to achieve the purpose of separation.
Sorting Application
Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.
Why Choose Jietai Color Sorter
Factory direct,quality assurance!!!
⓵Running Stable
Quality assurance,
long service life.
Non-invasive sorting for all-round protection of easy to damage and break materials.
⓶Minimalist User Interface
Let you far away from debugging difficult and operation complex trouble.
⓷Super Brain recognition
Intelligent sorting,accurate identification of extremely small color difference and extremely small heterochromatic area materials.
⓸Intelligent Valve
Intelligent control of blowing frequency,It can be achieved optimized carryover and ultra-low air consumption.
Intelligent detection of valve running status which makes the failure and operation life of the valve under control.
⓹Powerful Function
Shape sorting and color sorting,intelligent color sorting plans for flexible matching.
⓺After-sale Without Worry
provide free training,consulting and technical support for users;
Provide free warranty service for one year(except the wearing spare parts)
JIETAI Color Sorter Core Parts
1. Touch Screen Interface:Independent-research operate interface.
2. Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
3. Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
4. Filter:SMC from Japan.
5. Touch Screen System:Windows CE system.
6. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
7. Ejectors:Italy core technology, new special high wear-resistant material.
7. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Our Office&Workshop&Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Packaging&Shipping
1.Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
2.The delivery time is about 15-20 days after receciving the deposit.
Our Service
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
Cooperation Case
The success introduction of the JT Color Sorter into the market meets the demand of the international
market.Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Plaese feel free to inquire if you are interested in our procducts!
