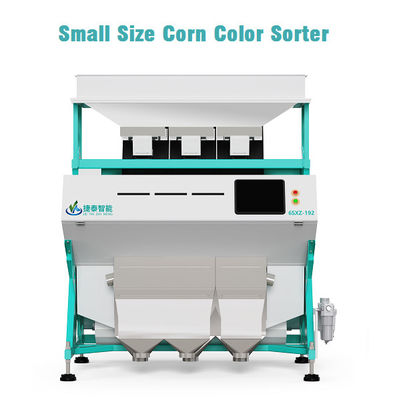

Corn RGB CCD Millet Color Sorting Machine With Outstanding Quality

  • Corn RGB CCD Millet Color Sorting Machine With Outstanding Quality
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXM-192A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity(T/H) 2.0-4.0 Power 220V/50HZ
Color Blue-White Condition New
Sorting Accuracy(%) ≥99.99 Dimension(l*w*h) 1687*1515*1910mm
Function Color Sorter,sorting Different Color Materials Weight 530KGS
Name Rice Color Sorter Machine
Highlight

CCD Corn Color Sorting Machine

,

Millet Color Sorting Machine

,

RGB Corn Color Sorter
Leave a Message
Product Description

Corn RGB CCD Color Sorter Millet Sorting Machine with Outstanding Quality

Color Sorter Working Principle

Color Sorter working principle is to use the photoelectric detection technology and image acquisition system to obtain the (RGB) red, green and blue optical information of the material, convert the optical characteristics of the material into a photoelectric signal, and then send the signal to the control system to drive the ejector uses compressed air to blow out foreign particles in the material.



Technical Parameters

Model
NO.

 6SXM-192A

Accuracy
(Percent)

 99.99

Optical Carryover
(Bad:Good)

 30:1

Capacity
(T/H)

 2.0-4.0

Power
(kwh)

 2.2

Air Pressure
(Mpa)

 0.6-0.8

Air Consumption
(L/M)

≤1.2

Dimension(mm)
(L*W*H)

 1687*1515*1910

Weight
(kg)

 700



Corn Processing

Corn RGB CCD Millet Color Sorting Machine With Outstanding Quality 0



Product Feature

1.No need to debug, you can use after power-on, without any special experience.

2.Easy to operate,one-click to choose the sorting modes, such as normal rice, japonica rice, glutinous rice, black rice and red rice.

3.The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.

4.It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.

5.The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.

6.Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.

7.Intelligent self-inspection, dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.

8.Worry-free after-sale service, free regular inspection and quality guaranteed.



Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
