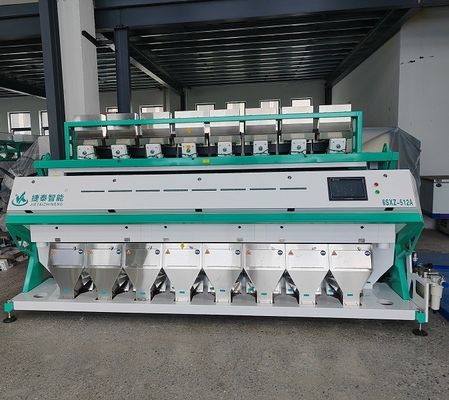

RGB Rice Sorting Machine 8 Chutes CCD Rice Color Sorter 220V / 50HZ
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-512A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity(T/H) | 6.0-12.0 | Power | 220V/50HZ |
|---|---|---|---|
| Color | Blue-White | Condition | New |
| Sorting Accuracy(%) | ≥99.99 | Dimension(l*w*h) | 3486*1560*1800mm |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training | Name | Rice Color Sorter Machine |
| Highlight | 220V CCD Rice Color Sorter,RGB Rice Sorting Machine,Rice Sorting Machine 8 Chutes |
||
Product Description
2023 New RGB Rice Sorting Machine 8 Chutes CCD Rice Color Sorter
Color Sorter Sorting Steps
1. The material enters the machine from the collecting hopper on the top, and the selected material falls along the feeding distribution trough through the vibration of the feeding device (vibrator).
2. The material passes through the vibrator at the upper end of the chute and accelerates down the chute into the sorting box
3. After entering the sorting box, it passes between the image processing sensor CCD and the background device. Under the action of the light source, the CCD receives the synthetic light signal from the selected material, so that the system generates an output signal, which is amplified and transmitted to the FPGA +ARM arithmetic processing system, and then the control system sends instructions to drive the injection solenoid valve to move, blowing the heterochromatic particles into the waste cavity of the discharge hopper to flow away.
4. The good selected materials continue to fall into the finished product cavity of the receiving hopper and flow out, so that the selected materials can achieve the purpose of selection.
Technical Parameters
| Model NO. |
6SXZ-512A |
| Accuracy (Percent) |
99.99 |
| Optical Carryover (Bad:Good) |
30:1 |
| Capacity (T/H) |
6.0-12.0 |
| Power (kwh) |
5.0 |
| Air Pressure (Mpa) |
0.6-0.8 |
| Air Consumption (L/M) |
≤3.6 |
| Dimension(mm) (L*W*H) |
3486*1560*1800 |
| Weight (kg) |
1750 |
Sorting Performance
Jietai rice color sorter, as an intelligent machine, can detect and remove mildewy rice, white rice,broken rice, glass and stone in the raw material and classify rice based on the color,shape and other differences,Jietai rice color sorter always provides customers with intelligent,professional and comprehensive sorting solutions,such as sorting extremely light yellowrice, backline rice, needle tip, diseased rice and small broken rice.
Why Choose Jietai Color Sorter?
1.No need to debug, you can use after power-on, without any special experience.
2.Easy to operate,one-click to choose the sorting modes, such as normal rice, japonica rice, glutinous rice, black rice and red rice.
3.The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4.It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5.The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6.Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7.Intelligent self-inspection, dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8.Worry-free after-sale service, free regular inspection and quality guaranteed.
Cooperation Case
Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
