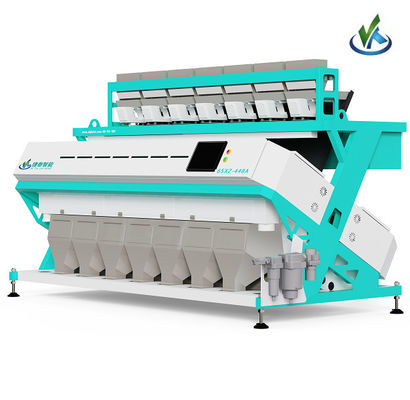

Sesame Seeds Color Sorter Separator Optical Color Sorting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-448A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MODEL | 6SXZ-448A | Chutes/Channels | 7 / 448 |
|---|---|---|---|
| Throughput(T/H) | 5-7 | Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 4.0 | Power Voltage | 220V/50Hz |
| Function | Sorting Different Color Materials | Type | Grain Processing Equipment,Farm Equipment Rice Color Sorter Machine Price,rice Sorting Machine |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Third-party Support Available | Name | Rice Color Sorter Machine |
| Highlight | Sesame Seeds Separator Machine,Sesame Seeds Color Sorter,Sesame Seeds Optical Color Sorting Machine |
||
Product Description
Sesame Seeds Color Sorter Separator Optical Color Sorting Machine
How the color sorter works
The selected material enters the machine from the hopper at the top. Through the vibration of the vibrator device, the selected material slides down the channel, accelerates its falling into the observation area in the separation room, and passes through the sensor and the background plate. Under the action of the light source, according to the light intensity and color change, the system generates an output signal to drive the solenoid valve to blow out the heterogeneous particles to the waste chamber of the receiving hopper, and the good selected material continues to fall into the finished product chamber of the receiving hopper, so as to achieve the purpose of separation.
Technical Parameters
| MODEL | 6SXZ-448A |
| Chutes/Channels | 7 / 448 |
| Throughput(T/H) | 5-7 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 4.0 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | 0.6-0.8 |
| Air Consumption(L/M) | <2.6 |
| Weight(Kg) | 1340 |
| Dimension(L*W*H) | 3166*1570*1785mm |
Application Fields
＊ Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.
＊ Grains:peanut, corn,sesame,oat,millet,little lentil.
＊ Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
＊ Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
＊ Seeds:watermelon seeds;sunflower seeds.
＊ Industries:plastic,electronic component,industrial salt,quartz sand
＊ Others:tea,raisins,wolf berry,pepper.
Advantage of Jietai Color Sorter
1). No need to debug, you can use after power-on, without any special experience.
2). Easy to operate,one-click to choose the sorting modes, such as normal rice, japonica rice, glutinous rice, black rice and red rice.
3). The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4). It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5). The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6). Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7). Intelligent self-inspection, dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8). Worry-free after-sale service, free regular inspection and quality guaranteed.
Packaging&Shipping
Plaese feel free to inquire if you are interested in our procducts!
