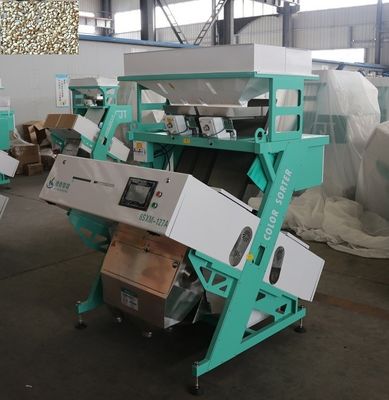

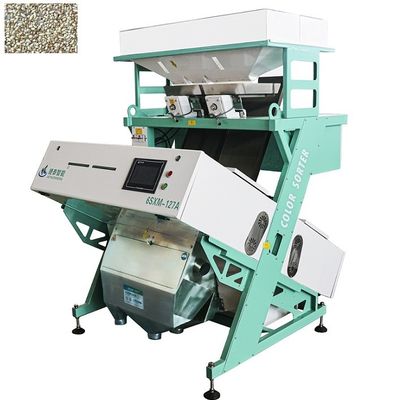

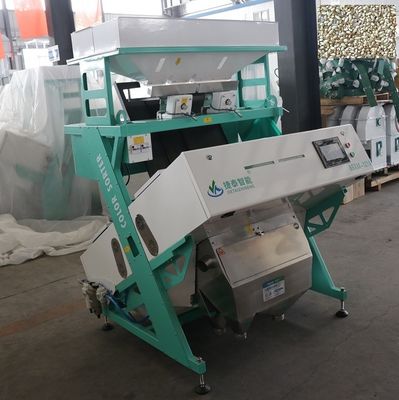

Sesame Seed Color Sorter Machine 1.6T/H-3T/H RGB Color Sorter System
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXM-127A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Seed Color Sorter Machine | Application | Grain Sorting |
|---|---|---|---|
| Power | 220V/50HZ | Color | Blue-White |
| Condition | New | Sorting Accuracy(%) | ≥99.99 |
| Dimension(l*w*h) | 1320*1520*1885mm | Function | Color Sorter,Sorting Different Color Materials |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,Commissioning And Training | Capacity(T/H) | 1.6-3.0 |
| Certification | ISO9001,CE | ||
| Highlight | Sesame Seed Color Sorter Machine,Seed Color Sorter Machine 1.6T/H,3T/H RGB Color Sorter |
||
Product Description
OEM Photoelectric Stone RGB Color Sorter System 220V 50HZ
Product Description
Anhui Jietai Intelligent Technology Co., Ltd. is an industry-leading R&D and manufacturer of intelligent color sorters. We specially developed a cost-effective sorting and processing equipment for rice mill factories, farms and cooperatives,this product integrates ultra-clear camera system, targeted positioning system, magnetic ejectors and other core technologies and components.When sorting rice,accuracy adjusting freely,low consumption and high capacity. At the same time with the platform-integrated design and intelligent production,the stability and reliability of products are significantly ahead.Installation and maintenance are convenient,easy to operate, bringing a better experience to our customers.
Technical Parameters
|
Model |
6SXM-127A |
|
Accuracy |
99.99 |
|
Optical Carryover |
30:1 |
|
Capacity |
1.6-3.0 |
|
Power |
2.0 |
|
Air Pressure |
0.6-0.8 |
|
Air Consumption |
≤1.0 |
|
Dimension(mm) |
1320*1520*1885 |
|
Weight |
430 |
Color Sorter Working Principle
Color Sorter working principle is to use the photoelectric detection technology and image acquisition system to obtain the (RGB) red, green and blue optical information of the material, convert the optical characteristics of the material into a photoelectric signal, and then send the signal to the control system to drive the ejector uses compressed air to blow out foreign particles in the material.
Sorting Application
It can sort black and white sesame seeds,yellow sesame seeds,and so on.
JIETAI Color Sorter's Advantages
1. No need to debug, you can use after power-on, without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice, japonica rice, glutinous rice, black rice and red rice.
3. The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4. It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5. The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6. Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7. Intelligent self-inspection, dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8. Worry-free after-sale service, free regular inspection and quality guaranteed.
JIETAI Color Sorter Core Parts
* Touch Screen Interface:Independent-research operate interface.
* Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
* Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
* Filter:SMC from Japan.
* Touch Screen System:Windows CE system.
* Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
* Ejectors:Italy core technology, new special high wear-resistant material.
* LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Our Office&Workshop&Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Packaging&Shipping
1.Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
2.The delivery time is about 15-20 days after receciving the deposit.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.
Cooperation Case
The success introduction of the JT Color Sorter into the market meets the demand of the international
market.Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Plaese feel free to inquire if you are interested in our procducts!
