Large Capacity Vertical Corn Dryer , Soybean Dryer Machine For Agricultural

Place of Origin Anhui,China
Brand Name PRESUN
Model Number 5HPX-15/30
Minimum Order Quantity 1sets
Price negotiable
Packaging Details Seaworthy Wooden Packingworthy Wooden Packing
Payment Terms L/C, T/T
Supply Ability 100sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Soybean Dryer Machine Customization Available
Type Drying Machine Application Rice,Corn,Wheat...
Condition New Voltage 380V
Specification Depend On The Capacity
High Light

Large Capacity Vertical Corn Dryer

,

Vertical Agricultural Dryer Machine

,

Large Capacity Soybean Dryer Machine

Leave a Message
Product Description

Large Capacity Corn and Soybean Drying Grain Dryer Machine for Sale

Product Features

Grain dryers are used for drying agricultural products:Rice corn,maize,wheat,peanuts,oil seed,etc.

The drying process is to remove humidity and prevent the products from fungi or mildew,which provides the possibility of longer time storage.

1.The grain dryer equipment has a simple structure; Small volume after dismantling,easy for transportation and movement.

2.Equipped with online moisture meter,automatic moisture control to prevent over-drying and weight loss.

3.Automatic temperature control system:the hot air temperature and air volume can be adjusted during drying process automatically to ensure the top drying quality.

4.Highly automated operation with microcomputer control to reduce labor and improve working efficiency.

5.Increased drying area and the drying speed is accelerated..Variety of heat sources can be applied,including biomass,fuel,gas,coal,etc.

Product Description

The necessity of grain drying

1.The moisture content of the rice in the warehouse is the key to whether the rice can be stored safely.

Grain harvest 1 to 3 times a year, and some need to store for several years. Grains are living organisms, and moisture is the condition for their survival. But too high water will lead to the breeding of insects and micro-organisms, resulting in cereal fever, fermentation, and deterioration and germination rate decreased. The Grain' moisture content of 25 to 30% when in the harvest, so as soon as possible to the safe moisture content of 13 to 14%.

2.Take rice as an example to illustrate the importance of drying.

Moisture below 18% of the rice can be stored at near room temperature for longer periods of time. However, even if the high water content of rice at room temperature due to microbial erosion, brown rice grain surface pollution generated brown or dark brown spots, brown rice grain quality deterioration, grade decreased; During the process of rice milling , the spot of brown spreading which resulting the quality of rice second deterioration, taste worse, even unable consumption. If the moisture content of more than 24% of the rice stacking a day is also very dangerous.

Product Specification

Model

Item

5HPX-15 5HPX-20 5HPX-30 5HPX-30B 5HPX-35
Loading capacity(kg) Paddy 3,000~15,000 3,000~20,000 4,000~30,000 4,000~30,000 5,000~35,000
  Corn 3,800~18,500 3,800~24,600 5,000~36,400 5,000~36,400 6,000~42,000
Dimension L*W*H (mm) 4321*2583*10000 4600*3263*10500 4600*3260*12700 4600*3570*12700 5712*5000*12400
Net Weight 3,000 4,200 5,500 6,500 8,000
Heat Source Biomass Furnace/Gas Burner/Diesel Burner
Power Consumption (kw) 9.95 10.6 15.45 21.7 19.7
Input Voltage 3 Phase 220V/380V,50Hz
Husk Furnace Type Indirect
  Ignition Manual
Function Loading 50~60(approx) 50~60(approx) 60~70(approx) 60~70(approx) 60~70(approx)
  Discharge 50~60(approx) 50~60(approx) 60~70(approx) 60~70(approx) 60~70(approx)
  Drying Rate 0.5-1.2 %/h 0.5-1.2 %/h 0.6-1.2 %/h 0.6-1.4 %/h 0.5-1.2 %/h
Standard Devices Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor
Safety Devices Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch



1.Suitable to the drying of paddy,maize,wheat and pluses,the latest 30ton model applicate with automatic temperature control system,resistance moisture sensor all stainless steel drying chamber.

2.Modernized drying equipment enviroment friendly facility,low drying cost.

3.More than hundreds of projects installed professional presale and aftersale service team.

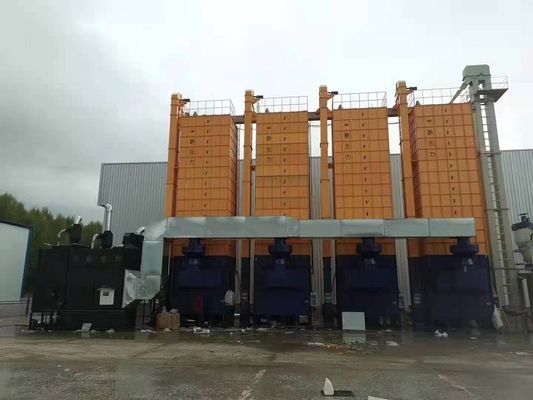

Cooperation Case
