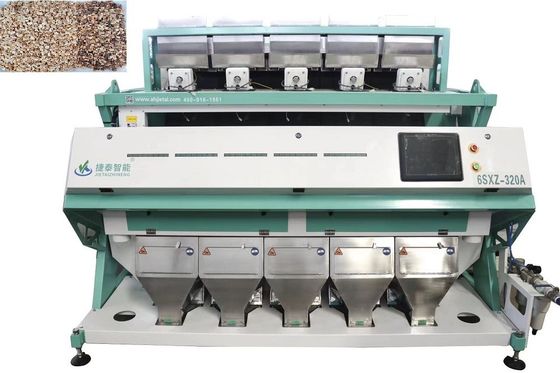

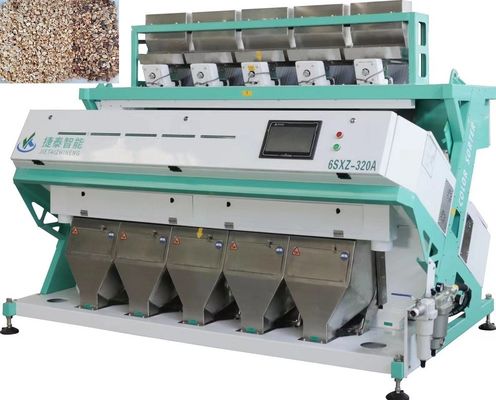

CCD Defected Pecan / Peanut Sorting Machine 220V 50HZ 2455*1524*1790mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-320A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Grains Sorting | Capacity(T/H) | 7.5-14 |
|---|---|---|---|
| Condition | New | Sorting Accuracy(%) | ≥99.99 |
| Dimension(l*w*h) | 2455*1524*1790mm | Function | Color Sorter,sorting Different Color Materials |
| Color | Blue-White | Voltage | 220V/50HZ |
| Power(kw) | 3.0 | Type | Grain Processing Equipment,Automatic,color Sorter Machine,Rice Mill Production Line,Rice Prossessing Equipment |
| Highlight | CCD Peanut Sorting Machine,Peanut Sorting Machine 220V,50HZ pecan sorting machine |
||
Product Description
Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
Technical Parameters
| MODEL | 6SXZ-320A |
| Chutes/Channels | 5/ 320 |
| Throughput(T/H) | 7.5-15 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 3.0 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | 0.6-0.8 |
| Air Consumption(L/M) | <3.0 |
| Weight(Kg) | 1000 |
| Dimension(L*W*H) | 2455*1524*1790mm |
Working Principle of Color Sorters
Raw Material are put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Why Choose JIETAI Color Sorter
1.Running Stable
Quality assurance,
long service life.
Non-invasive sorting for all-round protection of easy to damage and break materials.
2.Minimalist User Interface
Let you far away from debugging difficult and operation complex trouble.
3.Super Brain Identification
Intelligent sorting,accurate identification of extremely small color difference and extremely small heterochromatic area materials.
4.Intelligent Valve
Intelligent control of blowing frequency,It can be achieved optimized carryover and ultra-low air consumption.
Intelligent detection of valve running status which makes the failure and operation life of the valve under control.
5.Powerful Function
Shape selection and color selection,intelligent color sorting plans for flexible matching.
6.After-sale Without Worry
provide free training,consulting and technical support for users;
Provide free warranty service for one year(except the wearing spare parts)
Application Fields
Our machine can sort many kinds of rice and grains and other materals
►Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.
► Grains:peanut, corn,sesame,oat,millet,little lentil.
►Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
►Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
► Seeds:watermelon seeds;sunflower seeds.
► Industries:plastic,electronic component,industrial salt,quartz sand
►Others:tea,raisins,wolfberry,pepper.
Cooperation Case
Our mahchine can be found everywhere in Thailand,China,India,Philippines,Algeria and others more conuntries.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.
Packaging&Shipping
Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
