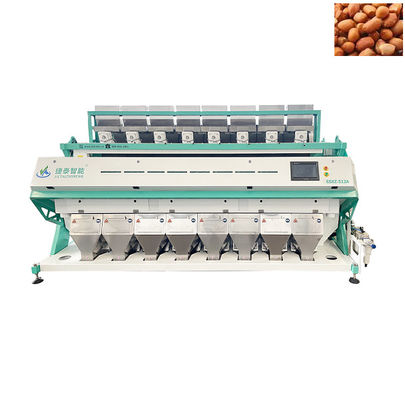

4KW Peanut Color Sorter Machine Blue For Sorting Hazelnut Macadamia Nuts
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIETAI ZHINENG |
| Certification | CE, ISO9001 |
| Model Number | 6SXZ-512A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | WOODEN CASE |
| Delivery Time | 15-20 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 220V/50HZ | Type | Nuts Sorting Machine |
|---|---|---|---|
| Condition | New | Color | Blue |
| Sorting Accuracy(%) | ≥99.99 | Power(w) | 4KW |
| Name | Peanut Color Sorter | Function | Sorting,Multifunction,separator Differeent Color Grains |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service | ||
| Highlight | 4KW Peanut Color Sorter Machine,Peanut Color Sorter Machine Blue,ISO9001 Peanut Color Sorting Machine |
||
Product Description
Product Description
"JIETAI" brand color sorter that we independently research and produce has been widely accepted by users once launched.Now it has been widely used in rice,grains,oil,chemical,medical,ore and so on.Quality First is the principle we stick to,Standardized six production processes,Strict production quality control system, Enables every Jietai color sorter has excellent quality guarantee,You Might can´t see the real strength, but you can feel it.Jietai intelligent color sorter, Agglomerates technology and craftsmanship.
Sorting Steps
Step1:The material enters the machine from the collecting hopper on the top, and the selected material falls along the feeding distribution trough through the vibration of the feeding device (vibrator).
Step2:The material passes through the vibrator at the upper end of the chute and accelerates down the chute into the sorting box
Step3:After entering the sorting box, it passes between the image processing sensor CCD and the background device. Under the action of the light source, the CCD receives the synthetic light signal from the selected material, so that the system generates an output signal, which is amplified and transmitted to the FPGA +ARM arithmetic processing system, and then the control system sends instructions to drive the injection solenoid valve to move, blowing the heterochromatic particles into the waste cavity of the discharge hopper to flow away.
Step4:The good selected materials continue to fall into the finished product cavity of the receiving hopper and flow out, so that the selected materials can achieve the purpose of selection.
Technical Parameters
| Model NO. |
6SXZ-512A |
| Accuracy (Percent) |
99.99 |
| Optical Carryover (Bad:Good) |
30:1 |
| Capacity (T/H) |
6.0-12.0 |
| Power (kwh) |
5.0 |
| Air Pressure (Mpa) |
0.6-0.8 |
| Air Consumption (L/M) |
≤3.6 |
| Dimension(mm) (L*W*H) |
3486*1560*1800 |
| Weight (kg) |
1750 |
Sorting Application
JIETAI Nut Color Sorter Machine, designed for kinds of nuts, walnut,almond,peanuts and other types of nuts. RGB CCD Optical Nut Sorting Machine,1 Chute, 2 Chutes,3 Chutes,4 Chutes,5 Chutes, 6 Chutes,7 Chutes,8 Chutes,10 Chutes,12 Chutes are available.JIETAI nut color sorter always provides customers with intelligent, professional and comprehensive sorting solutions.You can get best quality peanut color sorter machine and other nuts color sorter machine here!
JIETAI Color Sorter Core Parts
1. Touch Screen Interface:Independent-research operate interface.
2. Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
3. Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
4. Filter:SMC from Japan.
5. Touch Screen System:Windows CE system.
6. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
7. Ejectors:Italy core technology, new special high wear-resistant material.
7. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Advantage of Jietai Color Sorter
1. No need to debug, you can use after power-on, without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice, japonica rice, glutinous rice, black rice and red rice.
3. The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4. It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5. The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6. Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7. Intelligent self-inspection, dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8. Worry-free after-sale service, free regular inspection and quality guaranteed.
Our Office&Workshop&Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Packaging&Shipping
1.Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
2.The delivery time is about 15-20 days after receciving the deposit.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.
Cooperation Case
The success introduction of the JT Color Sorter into the market meets the demand of the international
market.Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Plaese feel free to inquire if you are interested in our procducts!
FAQ
1.Q:How about the guarantee period?
A:The color sorter(excluding the wearing parts) is warranted for one year for free from date of purchase.we provide a lifetime maintenance service.
2.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.
3.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.
4.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you and Our engineers will also train your person when they go to your place for debugging.
5.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our sorting video to you.
6.Can you supply the accessories parts of color sorter?
A:Yes,we can supply some spare parts when you need.
