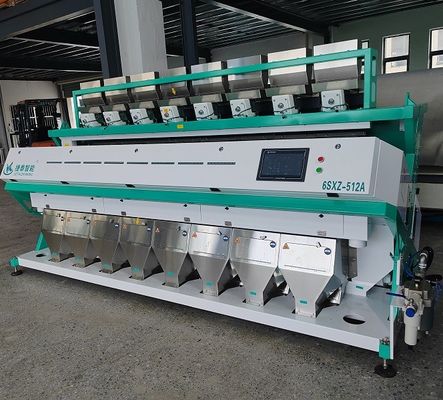

220V Multifunction Nuts Color Sorter Machinery For Processing Peanut

  • 220V Multifunction Nuts Color Sorter Machinery For Processing Peanut
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXZ-512A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity(T/H) 6.0-12.0 Power 220V/50HZ
Color Green-White Condition New
Sorting Accuracy(%) ≥99.99 Dimension(l*w*h) 3486*1560*1800mm
After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training
Highlight

220V Nuts Color Sorter

,

Multifunction Nuts Color Sorter

,

Nuts Color Sorter Machinery
Leave a Message
Product Description

Factory Price Multifunction Nuts Color Sorter For Processing Peanut



How the color sorter works

The selected material enters the machine from the hopper at the top. Through the vibration of the vibrator device, the selected material slides down the channel, accelerates its falling into the observation area in the separation room, and passes through the sensor and the background plate. Under the action of the light source, according to the light intensity and color change, the system generates an output signal to drive the solenoid valve to blow out the heterogeneous particles to the waste chamber of the receiving hopper, and the good selected material continues to fall into the finished product chamber of the receiving hopper, so as to achieve the purpose of separation.



Technical Parameters

Model
NO.		 6SXZ-512A
Accuracy
(Percent)		 99.99
Optical Carryover
(Bad:Good)		 30:1
Capacity
(T/H)		 6.0-12.0
Power
(kwh)		 5.0
Air Pressure
(Mpa)		 0.6-0.8
Air Consumption
(L/M)		 ≤3.6
Dimension(mm)
(L*W*H)		 3486*1560*1800
Weight
(kg)		 1750



Sorting Peanut Performance

It can sort peanut,groundnut,goober pea,groundnut kernels,shelled peanut,unhulled peanut etc

220V Multifunction Nuts Color Sorter Machinery For Processing Peanut 0



Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
220V Multifunction Nuts Color Sorter Machinery For Processing Peanut 1


Our Service

Before sales services

We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.

After sales services

1. Provide free training,consulting and technical support for users;

2. Provide personalized programs to the demands of customers;

3. Upgrade software for free for a life time;

4. Provide free warranty service for one year(except the wearing spare parts);

5. Provide 7*24 hours consultation and urgent servicce for users.
