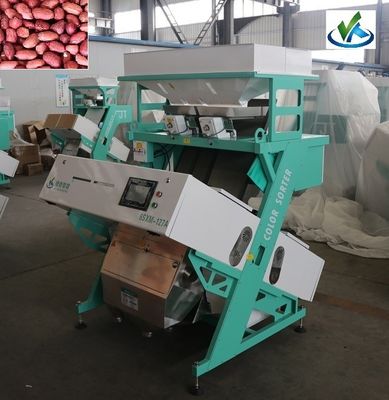

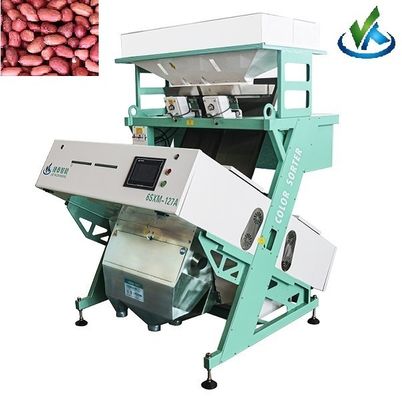

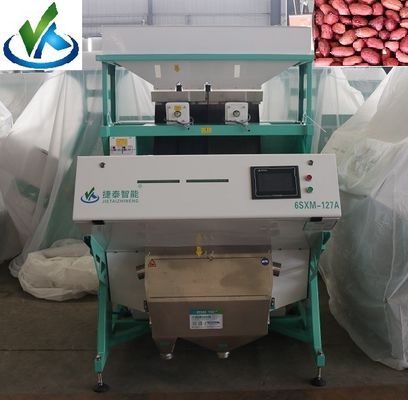

RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting

  • RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting
  • RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting
  • RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXM-127A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Grain Sorting Capacity(T/H) 1.6-3.0
Power 220V/50HZ Color Blue-White
Condition New Sorting Accuracy(%) ≥99.99
Dimension(l*w*h) 1320*1520*1885mm Function Color Sorter,sorting Different Color Materials
After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training Certification ISO9001,CE
Highlight

Optical Rice Sorting Machine

,

Rice Sorting Machine 10 Chutes

,

RGB Rice Sorting Machine
Leave a Message
Product Description

Heterochromatic Particles Grain Colour Sorter Cleaner 10 Chutes



Sorting Steps

1. The material enters the machine from the collecting hopper on the top, and the selected material falls along the feeding distribution trough through the vibration of the feeding device (vibrator).

2. The material passes through the vibrator at the upper end of the chute and accelerates down the chute into the sorting box

3. After entering the sorting box, it passes between the image processing sensor CCD and the background device. Under the action of the light source, the CCD receives the synthetic light signal from the selected material, so that the system generates an output signal, which is amplified and transmitted to the FPGA +ARM arithmetic processing system, and then the control system sends instructions to drive the injection solenoid valve to move, blowing the heterochromatic particles into the waste cavity of the discharge hopper to flow away.

4. The good selected materials continue to fall into the finished product cavity of the receiving hopper and flow out, so that the selected materials can achieve the purpose of selection.



Technical Parameters

Model
NO.

 6SXM-127A

Accuracy
(Percent)

 99.99

Optical Carryover
(Bad:Good)

 30:1

Capacity
(T/H)

 1.6-3.0

Power
(kwh)

 2.0

Air Pressure
(Mpa)

 0.6-0.8

Air Consumption
(L/M)

≤1.0

Dimension(mm)
(L*W*H)

 1320*1520*1885

Weight
(kg)

 430



Sorting Performance

JIETAI Grain Color Sorter Machine, designed for kinds of beans, chickpeas,lentil, corn, peanuts and other types of grains. RGB CCD Optical Rice Sorting Machine,1 Chute, 2 Chutes,3 Chutes,4 Chutes,5 Chutes, 6 Chutes,7 Chutes,8 Chutes,10 Chutes,12 Chutes are available.You can get best quality corn color sorter machine and other grain color sorter machine here.

RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 0RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 1



JIETAI Color Sorter Core Parts

* Touch Screen Interface:Independent-research operate interface.
* Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
* Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
* Filter:SMC from Japan.
* Touch Screen System:Windows CE system.
* Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
* Ejectors:Italy core technology, new special high wear-resistant material.
* LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.


RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 2



JIETAI Color Sorter Core Parts
RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 3 Touch Screen Interface:Independent-research operate interface.
RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 4 Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.

RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 5 Chip:Multi-core parallel image processing system,

flexible matching and synchronous operation of color sorting/shape sorting.


RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 6 Filter:SMC from Japan.

RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 7 Touch Screen System:Windows CE system.

RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 8 Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.


RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 9 Ejectors:Italy core technology, new special high wear-resistant material.



RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 10 LED:Taiwan Yiguang,shadow-less LED colorful light source,

multi-angle shadow-less light path technology.


Cooperation Case
RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 11


Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 12
Our Service

Before sales services

We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.

After sales services

1. Provide free training,consulting and technical support for users;

2. Provide personalized programs to the demands of customers;

3. Upgrade software for free for a life time;

4. Provide free warranty service for one year(except the wearing spare parts);

5. Provide 7*24 hours consultation and urgent servicce for users.



Contact Us

RGB CCD Optical Rice Sorting Machine 10 Chutes For Grain Sorting 13


FAQ
1.Q:How about the guarantee period?
A:The color sorter(excluding the wearing parts) is warranted for one year for free from date of purchase.we provide a lifetime maintenance service.

2.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.

3.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.

4.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you and Our engineers will also train your person when they go to your place for debugging.


5.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our sorting video to you.

6.Can you supply the accessories parts of color sorter?
A:Yes,we can supply some spare parts when you need.
