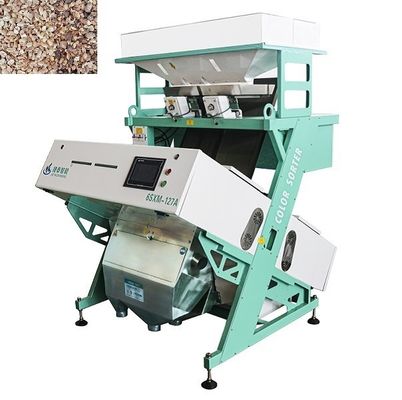

CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting

  • CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting
  • CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting
  • CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting
Place of Origin CHINA
Brand Name JIETAI ZHINENG
Certification CE, ISO9001
Model Number 6SXM-127A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 100Pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Grain Sorting Capacity(T/H) 1.6-3.0
Power 220V/50HZ Color Blue-White
Condition New Sorting Accuracy(%) ≥99.99
Dimension(l*w*h) 1320*1520*1885mm Function Color Sorter,sorting Different Color Materials
After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training Certification ISO9001,CE
High Light

CCD Camera Peanut Color Sorter Machine

,

2 Chutes Peanut Color Sorter Machine

,

ISO9001 Pistachio Sorting Machine
Leave a Message
Product Description

Technical Parameters

Model
NO.

 6SXM-127A

Accuracy
(Percent)

 99.99

Optical Carryover
(Bad:Good)

 30:1

Capacity
(T/H)

 1.6-3.0

Power
(kwh)

 2.0

Air Pressure
(Mpa)

 0.6-0.8

Air Consumption
(L/M)

≤1.0

Dimension(mm)
(L*W*H)

 1320*1520*1885

Weight
(kg)

 430



Working Principle of Color Sorters

Raw Materialare put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting 0

Sorting Performance

Peanut color sorter is using 5400 pixel RGB full colorful camera,It also can multi using on sorting various kinds of beans, like coffee beans, roasted bean, soyabean,peas,lentil,broad bean, green bean, mung bean, red bean, black bean,split bean,coffee bean, coca bean etc..

CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting 1



JIETAI Color Sorter Core Parts

a.Touch Screen Interface:Independent-research operate interface.
b.Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
c.Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
d. Filter:SMC from Japan.
e.Touch Screen System:Windows CE system.
f. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
g. Ejectors:Italy core technology, new special high wear-resistant material.
h. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.


CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting 2



Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting 3
Our Service

Before sales services

We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.

After sales services

1. Provide free training,consulting and technical support for users;

2. Provide personalized programs to the demands of customers;

3. Upgrade software for free for a life time;

4. Provide free warranty service for one year(except the wearing spare parts);

5. Provide 7*24 hours consultation and urgent servicce for users.



Contact Us

CCD Camera 2 Chutes Peanut Color Sorter Machine For Pistachio Sorting 4


FAQ
1.Q:How about the guarantee period?
A:The color sorter(excluding the wearing parts) is warranted for one year for free from date of purchase.we provide a lifetime maintenance service.

2.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.

3.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.

4.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you and Our engineers will also train your person when they go to your place for debugging.


5.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our sorting video to you.

6.Can you supply the accessories parts of color sorter?
A:Yes,we can supply some spare parts when you need.
